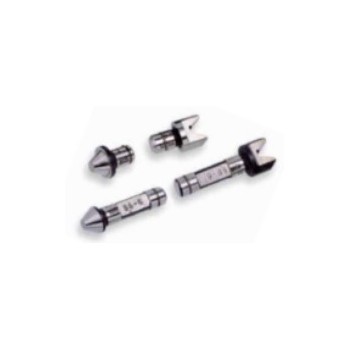

THREAD MEASURING INSERTS FOR INSIDE MICROMETER...
Ref : TOU07-5I201605
Availability: Out of stock
Thread pitch : 20-19-18-16 TPI, Shaft : 5mm, Angle : 55°
Reference: TOU07-ME070000

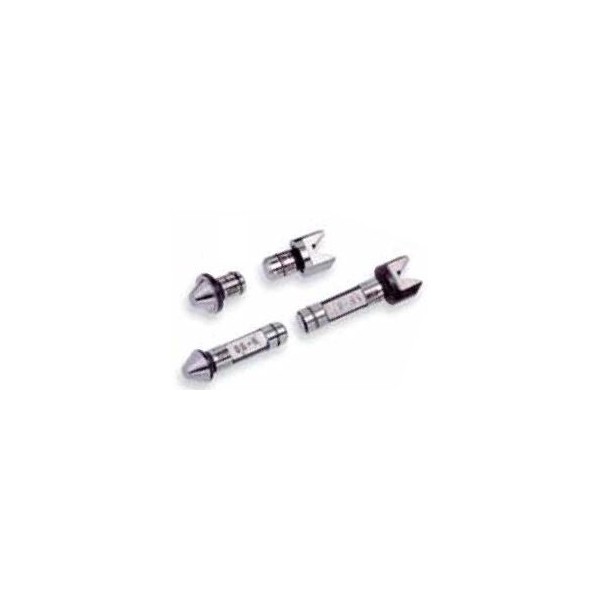

INTERCHANGEABLE ANVILS FOR OUTSIDE THREAD MEASURING PITCH 0,7 - 0,75 - 0,8 mm
Contact us
Interchangeable anvils : 60°, Diameter : 3,5 mm
Anvils couple for thread measuring for adapted outside micrometer.
TOU07-ME070000
Data sheet
- 1 - Type de produit
- Micromètre
- Pas
- 0,7 - 0,75 - 0,8 mm
- Intérieur/Extérieur
- Extérieur
Interchangeable anvils : 60°, Diameter : 3,5 mm
