Reference: TOU07-AF062065
SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 0,620mm ; Metric threads : 1,00mm ; TPI threads: 26-24TPI

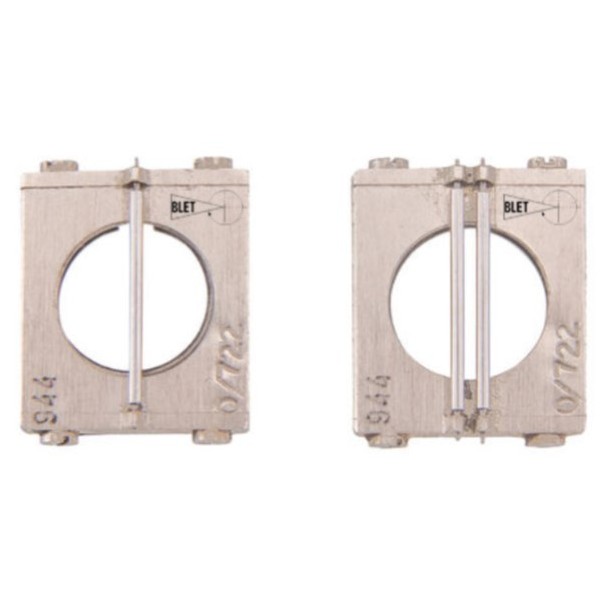

This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF062065
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 1,00mm
- Diamètre du fil
- 0,620mm
- Pas Whitworth
- 26-24TPI
Wire diameter: 0,620mm ; Metric threads : 1,00mm ; TPI threads: 26-24TPI
