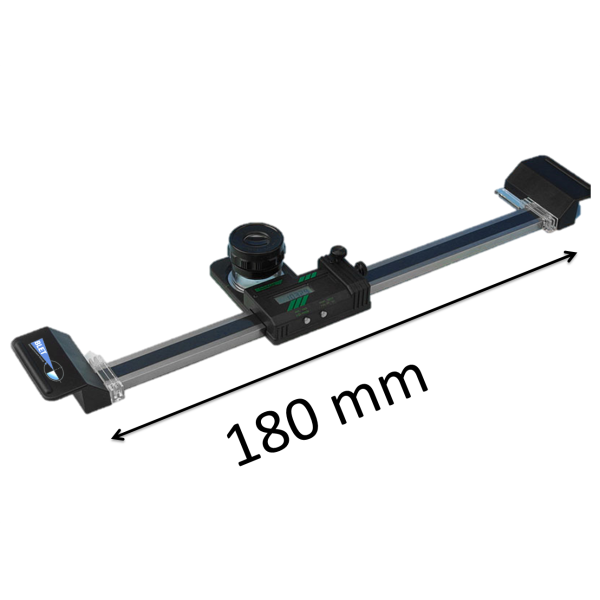

DIGITAL RULER WITH ZOOM FOR PRINT SHOP x10 LENGTH 180MM

Use of our digital ruler makes length measurements simpler. The hardened stainless steel guide has an inductive strip. This provides the electronics with the information on the momentary position of the measuring carriage running play and wear-free on longitudinal ball bearings. The coated, four lens optical system with 10x magnification factor makes it possible to move precisely to the measuring point. The magnifier has a fine focus for adjustment to your specific correction. The magnifier is equipped with a reticule plate for exact positioning of the measuring carriage. The hard chrome vapour-coated graduations on this plate ensure precise readings. This easy-to-read display shows a maximum resolution of 0.10 millimetres. A fine adjustment is located immediately next to the display. The vertical arresting screw arrests a part of the measuring carriage. The horizontal positioning screw moves the carriage sensitively to the measuring point. The zero point for the measurement can then be set by pressing the reset button. After moving the carriage to the second measuring point the result can be read off on the display. The system has an RS232 interface. This allows serial transfer of the values to the computer.
