- New
PYRANOMETER GSM 3.3 THIES
Ref : 7.1415.09.xxx
Availability: Out of stock
Operating voltage : 9-24 V DC Electr. Output : Analogue Measuring range : 0-1300 W/m² Spectral range : 380-1100nm
Reference: 7.1415.02.002

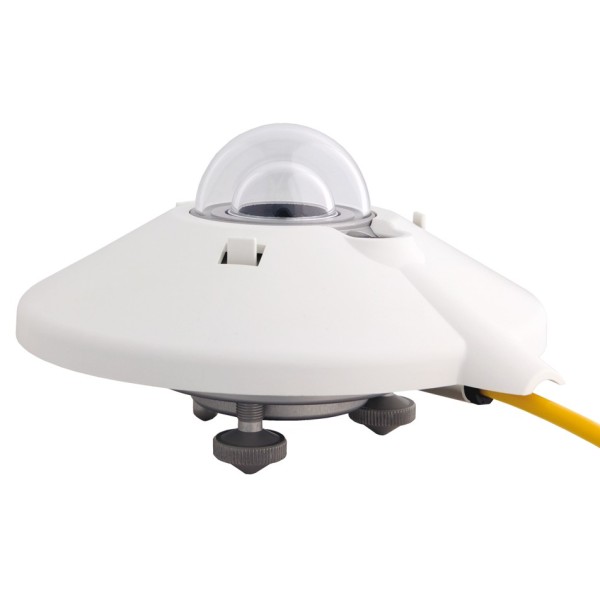

PYRANOMETER CMP 6 THIES
Contact us
Electr. Output : 0-15mV Measuring range : 0-4000 W/m² Spectral range : 310-2800nm
For the measurement of the global radiation on plane surfaces. The global radiation results from the sum of direct radiation and diffuse radiation.The WMO-recommended measuring value transmitter meets the ISO 9060 classification “Secondary Standard“ Adjustable feet and a level allow an easy horizon-adjustment.
Delivery includes calibration certificate.
More information : Our website BLET
7.1415.02.002
Data sheet
- Précision
- 1%
- Résolution
- 5-15µV/W/m²
- Plage de mesure
- 0-2000 W/m²
- 1 - Type de produit
- Pyranomètre
- Connexion electr.
- Connecteur, cable 10m
- Domaine spectral
- 310-2800nm
- Sortie
- 0-15 mV
- Dimensions
- 150x92mm
Electr. Output : 0-15mV Measuring range : 0-4000 W/m² Spectral range : 310-2800nm
6 other products in the same category:
PYRANOMETER SP-LITE THIES
Ref : 7.1415.08.000
Availability: Out of stock
Electr. Output : 0-0,2 V Measuring range : 0-2000 W/m² Spectral range : 400-1100nm
SHADOW RING CM 121 B THIES
Ref : 7.1415.01.121
Availability: Out of stock
Serves for shading the Pyranometer from direct solar radiation.
PYRANOMETER CMP 11 THIES
Ref : 7.1415.01.001
Availability: Out of stock
Electr. Output : 0-15mV Measuring range : 0-4000 W/m² Spectral range : 310-2800nm
PYRANOMETER CMP 3 THIES
Ref : 7.1415.03.003
Availability: Out of stock
Electr. Output : 0-15mV Measuring range : 0-4000 W/m² Spectral range : 310-2800nm
PYRANOMETER GSM 10.7 THIES
Ref : 7.1415.05.xxx
Availability: Out of stock
Operating voltage : 9-24 V DC Electr. Output : Analogue Measuring range : 0-1300 W/m² Spectral range : 380-2800nm
