BLET tension meters allow accurating measures of wires, fibers, bands. Fields of application are large like textile, wire industries or optical fiber production. All our tension meters feature the 3-roller measuring system. The center measuring roller is deflected by the tension of the measured material. This measuring principle assures highest accuracy and repeatability. Ergonomic screen for easy reading. The scale mightbe adapted to other unit (as lbs). Other models on demand.

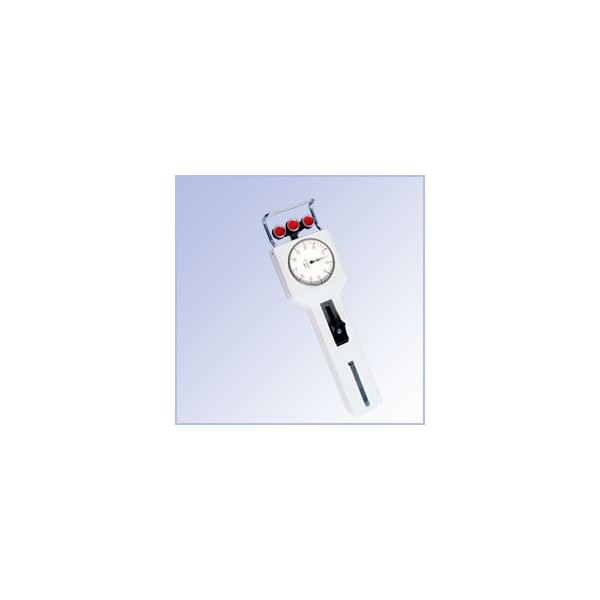

TEN11-AA12DN60
Data sheet
Plage de mesure
20-120 cN
1 - Type de produit
Tensiomètre
Lecture
2,5 cN
Digital
Non
Espacement des roues
65 mm
Compensateur
Non
Display : mechanical ; Tension range : 20-120 cN ; Resolution : 2,5 cN ; Without compensator ; Measuring head width : 65 mm ; Family : DN1-120
Display : mechanical ; Capacity : 500 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-0500
Display : mechanical ; Capacity : 3000 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 80 mm ; Family : TENC0-3000
Display : mechanical ; Capacity : 2000 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-2000
Display : mechanical ; Capacity : 1500 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-1500
