BLET tension meters allow accurating measures of wires, fibers, bands. Fields of application are large like textile, wire industries or optical fiber production. All our tension meters feature the 3-roller measuring system. The center measuring roller is deflected by the tension of the measured material. This measuring principle assures highest accuracy and repeatability. Ergonomic screen for easy reading. The scale mightbe adapted to other unit (as lbs). Material thickness compensator compensates different material diameters for a particular range. Other models on demand.
TEN11-AB02HOQ0
Data sheet
Plage de mesure
5-20 daN
1 - Type de produit
Tensiomètre
Lecture
0,2 daN
Digital
Non
Espacement des roues
216 mm
Compensateur
Oui

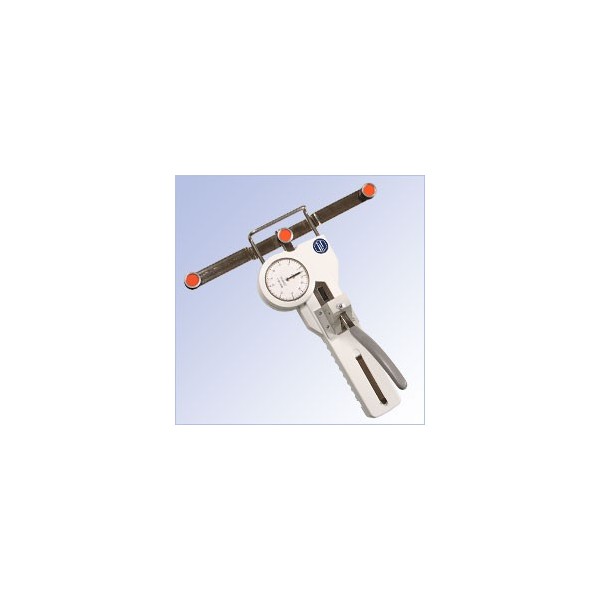

Display : mechanical ; Tension range : 5-20 daN ; Resolution : 0,2 daN ; With compensator ; Measuring head width : 216 mm ; Family : DX2-20K-L
Display : mechanical ; Capacity : 1000 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-1000
Display : mechanical ; Capacity : 2000 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-2000
Display : mechanical ; Capacity : 500 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-0500
Display : mechanical ; Capacity : 1500 kg ; Rope diameter : from 6 to 19 mm ; Measuring head width : 234 mm ; Display diameter : 63 mm ; Family : TENC0-1500
