- New
- On demand
HEAVY DUTY WIND MONITOR-HD-ALPINE
Ref : 05108-45
Availability: Out of stock
Ice resistant coating Range : 0-100m/s, 0-360° Accuracy : +/-0,3m/s, +/-3°
Reference: 05103X-45
ALPINE WIND MONITOR
€0.00
Tax included
Compact Ice resistant coating Measuring range : 0-100m/s, 0-360° Accuracy : +/-0.3m/s, +/-3°

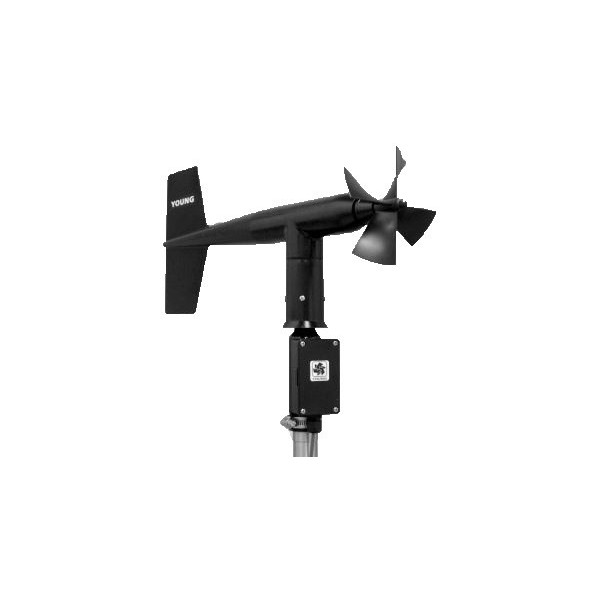

High performance wind sensor (speed and direction) with an ice-resistant coating ; height 40cm, length 57cm, mounted on a 34mm diameter pipe. Propeller anemometer with 4 helicoid blades molded of polypropylene, 14cm diameter, AC output with 3 pulses per revolution. 38cm turning radius vane, 0,25% linearity potentiometer with a life expectancy of 50 million revolutions. Operates at temperatures within the -50 to 50°C range.
05103X-45_W01
Data sheet
- Précision
- +/-0.3m/s, +/-3°
- Plage de mesure
- 1-100 m/s, 0-360°
- Type d'alimentation électrique
- 0-15VDC
- Température de fonctionnement
- -50 à 50°C
Compact Ice resistant coating Measuring range : 0-100m/s, 0-360° Accuracy : +/-0.3m/s, +/-3°
