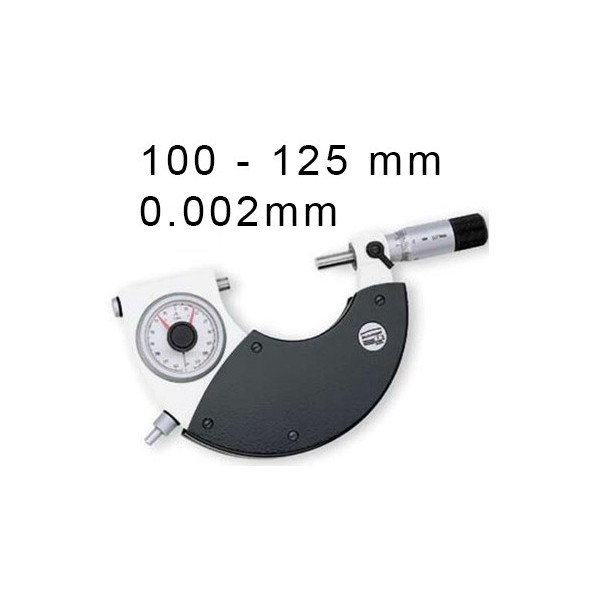

OUTSIDE MECHANICAL MICROMETER BLET STEINMEYER, MEASURING RANGE : 100-125 mm, READING : 0,002 mm ref : MIC07-C0023C05 STEINMEYER
    OUTSIDE MECHANICAL MICROMETER BLET STEINMEYER, MEASURING RANGE : 100-125 mm, READING : 0,002 mm ref : MIC07-C0023C05 STEINMEYER
  • New
OUTSIDE MECHANICAL MICROMETER BLET STEINMEYER, MEASURING RANGE : 100-125 mm, READING : 0,002 mm ref : MIC07-C0023C05 STEINMEYER
OUTSIDE MECHANICAL MICROMETER BLET STEINMEYER, MEASURING RANGE : 100-125 mm, READING : 0,002 mm ref : MIC07-C0023C05 STEINMEYER

Reference: MIC07-C0023C05

OUTSIDE MECHANICAL MICROMETER BLET STEINMEYER, MEASURING RANGE : 100-125 mm, READING : 0,002 mm

Contact us
Digital display : No, Measuring range : 100-125 mm, Reading : 0,002 mm, Measuring face diameter : 8 mm, Pitch : 0,5 mm, Retraction : Yes
Quantity

Often used for mechanical measuring diameters of cylindrical elements or layers, the outer BLET STEINMEYER precision micrometer measure all linear dimensions in two points. This palmer is composed of a fixed key and a key for mobile micrometer screw. Excellent accuracy. Vernier reading, sometimes supplemented with a meter. Or the ratchet torque limiter, integrated over some, allows an identical clamping for each measurement. Regulating the strength of the outside micrometer BLET STEINMEYER obtained by ratchet.

MIC07-C0023C05

Data sheet

Plage de mesure
100-125 mm
1 - Type de produit
Micromètre
Lecture
0,002 mm
Digital
Non
Pas
0,5 mm
Intérieur/Extérieur
Extérieur
Diamètre face de mesure
8 mm
Rétractation
Oui
