WEATHER DISPLAY LED THIES
Ref : 9.2750.xx.901
Availability: Out of stock
Display : 4x 5-digits LED Input/Output : RS 422/Analogue Resolution : dependinf on parameter Display range : -9999-+99999
Reference: 9.2750.0x.900
WEATHER DISPLAY LED THIES
€0.00
Tax included
Display : 4x 5-digits LED Input/Output : RS 422 Resolution : dependinf on parameter Display range : -9999-+99999

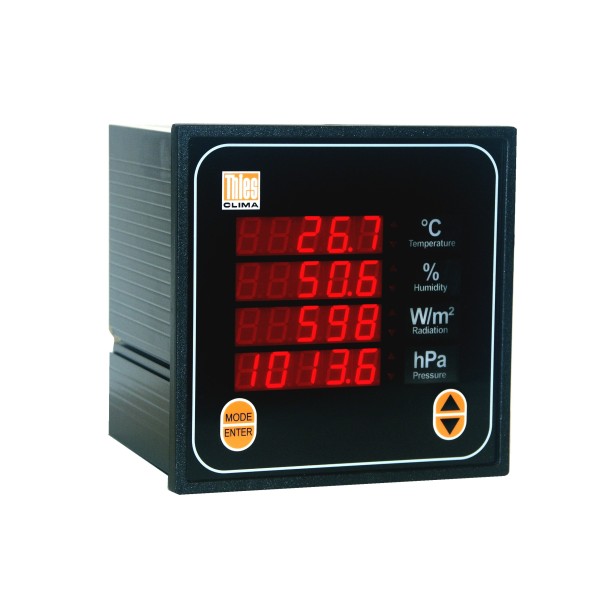

Displaying measuring instrument for four meteorological parameters (for ex. temperature, rel. humidity, global radiation, air pressure). Instrument with serial interface for the receipt of measuring data and output to processing systems.
- Operation and setting through front side keys.
- Display sequence and formatting of weather parameters are configurable acc. to customer’s request
- Display possible from instantaneous, min. , max. and mean value for each parameter.
- Input and Output of display parameters via a serial interface
9.2750.0x.900_W01
Data sheet
- Résolution
- Dépends des paramètres
- Type de protection
- IP 23
- 1 - Type de produit
- Afficheur météo
- Type d'alimentation électrique
- 230 V AC ou 115 V AC ou 12-28 V DC
- Afficheur
- 4x5 chiffres LED
- Paramètres affichés
- 4 paramètres
- Entrée Electri.
- RS 422
- Sortie
- RS 422
- Dimensions
- 144x144x135mm
Display : 4x 5-digits LED Input/Output : RS 422 Resolution : dependinf on parameter Display range : -9999-+99999
