PLATE STAND HIGH 570MM FOR OVERHEAD STIRRER...
Ref : ACC85-AHSBB05
Availability: Out of stock
Dimensions : 213x570x391 mm, Seating plate dimensions : 200x200 mm, Weighing range : 5-6000g
Reference: AGI85-HJ0K176G

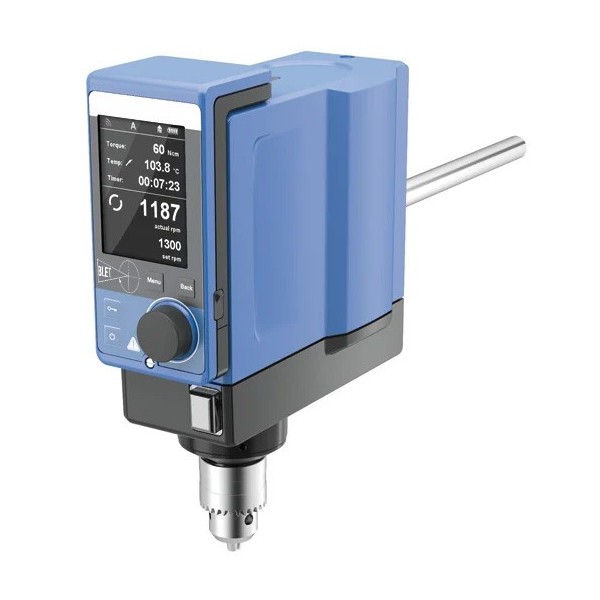

OVERHEAD STIRRER TEMPERATURE DISPLAY REMOTE CONTROLBLET 100 L 100000 MPAS 200 NCM 6-2000 RPM 91x297x231 MM
€4,778.40
Tax included
Stirring quantity : 100 L, Viscosity : 100000 mPas, Torque max : 200 Ncm, Temperature measuring : Yes (350°C), Speed range : 6-2000 rpm, Motor rating input : 135 W, Dimensions : 91x297x231 mm, Protection class : IP40
BLET offers a wide range of propeller agitators which adapts to the user's needs (viscosity, torque, rotation speed, mixed volume).
Delivered with temperature probe H67.60
AGI85-HJ0K176G
Data sheet
- 1 - Type de produit
- Agitateur
- Indice de protection
- IP40
- Volume
- 100 L
- Mesure de température
- Oui (350°C)
- Viscosité
- 100000 mPas
- Couple
- 200 Ncm
- Puissance absorbée
- 135 W
- Vitesse de rotation
- 6-2000 rpm
- Dimensions
- 91x297x231 mm
Stirring quantity : 100 L, Viscosity : 100000 mPas, Torque max : 200 Ncm, Temperature measuring : Yes (350°C), Speed range : 6-2000 rpm, Motor rating input : 135 W, Dimensions : 91x297x231 mm, Protection class : IP40
