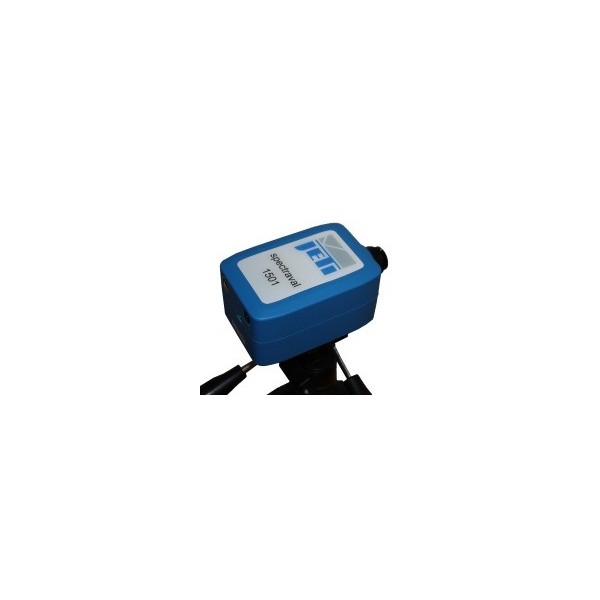

Compact spectroradiometer with imaging grating designed for the visible range, offering a variety of applications. The device measures spectral luminance, chromaticity coordinates ((x,y), (u',v')), correlated color temperature, color purity, color rendering index, RGB, circadian metrics and photosynthetically active radiation, with a 4.5nm optical resolution (FWHM) and USB 2.0 fullspeed and Bluetooth interfaces on the standard model ; an additional LAN interface can be added.
SPR27B-501L0X_W01
Data sheet
Précision
+/-2%;+/-0.5 nm
Résolution
1 nm
Plage de mesure
0.1-150 000 cd/m²
Type d'alimentation électrique
Batterie;USB
Température de fonctionnement
de 10 à 40°C
Angle
1.8°
Domaine spectral
380-780 nm
Fonctions
Luminance/Couleur
Dimensions
140x80x70 mm
Spectral range : 380-780 nm Measuring range : 0.1-150 000 cd/m² Accuracy : +/-0.5 nm, +/-2% Measuring angle : 1.8°
