Reference: BAG19-N024N003

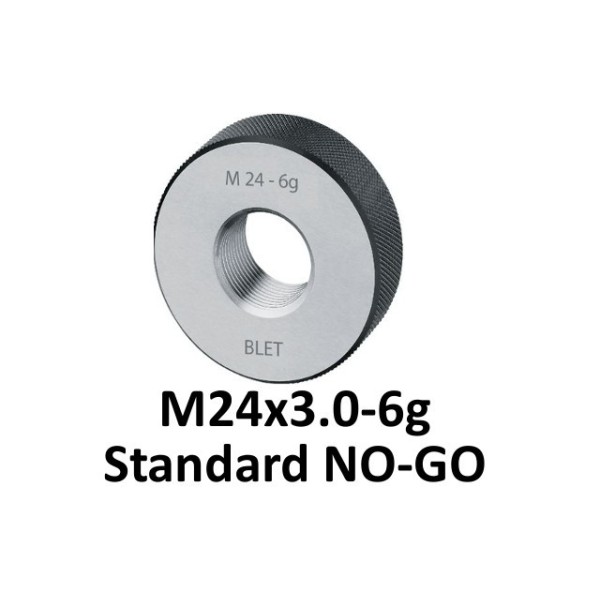

NO-GO THREAD RING GAUGE BLET
€127.07
Tax included
Diameter: 24 mm, Pitch: 3,0 mm, Ending: Filetée, NO-GO, Following the standard(s): ISO; DIN 13, Hardened, Polished, Material: Acier
NO-GO thread ring gauge with a diameter of 24 mm and a pitch of 3,0 mm. This gauge is made of a high-quality special gauge steel and is completely hardened, seaqsoned and finely polished. This gauge has a complete thread profile, effective and the core diameters corrspond to the largest dimension of the external thread to be tested. This gauge follows the standard(s): ISO; DIN 13.
Find all additional technical information about thread ring gauges on our website BLET.
Please download our catalog about thread ring gauges here.
BAG19-N024N003
Data sheet
- Matériau(x)
- Acier
- 1 - Type de produit
- Bague filetée NO-GO
- Disponibilité
- Sur commande
- Diamètre
- 24 mm
- Pas
- 3,0 mm
- GO/NO-GO
- NO-GO
- Norme(s)
- DIN 13;ISO
- Trempé
- Oui
- Réctifié
- Oui
- Rodé
- Non
- Série préférentielle
- Oui
- Type de bague
- Filetée, NO-GO
- Filetage
- Filetage métrique
Diameter: 24 mm, Pitch: 3,0 mm, Ending: Filetée, NO-GO, Following the standard(s): ISO; DIN 13, Hardened, Polished, Material: Acier
