ULTRASONIC ANEMOMETER
Ref : 86000
Availability: Out of stock
Range : 0-75m/s, 0-360° Serial and analog outputs
Reference: 86106

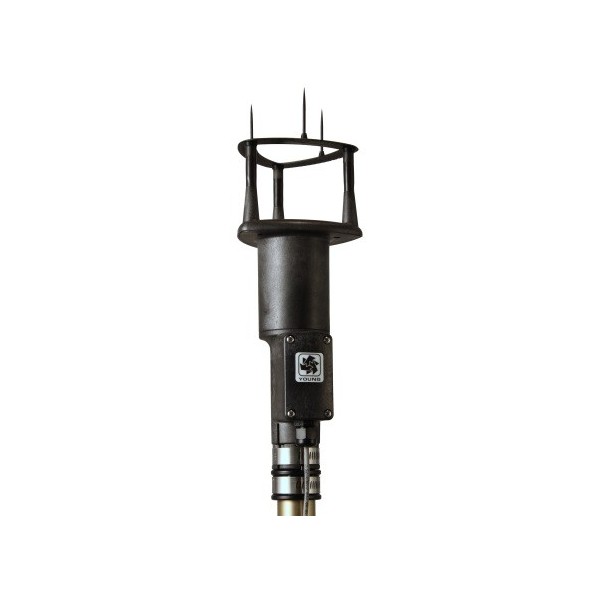

MARINE ULTRASONIC ANEMOMETER
€0.00
Tax included
For marine environment Range : 0-75m/s, 0-360° Serial NMEA and analog outputs
2D ultrasonic corrosion-resistant wind sensor (speed and direction) designed for marine environments, height 29cm, width 11cm, with a great variety of analog (0-5VDC or 4-20mA) and serial outputs : RS232 or RS485 with ASCII, RMYT and NMEA formats, 1200, 4800, 9600, 19200 or 38400 baud, and choice of unit among m/s, mph, knots and km/hr. Operates at temperatures within the -40 to 60°C range.
86106
Data sheet
- Précision
- +/-0.1m/s, +/-2°
- Résolution
- 0.01m/s, 0.1°
- Plage de mesure
- 0-75m/s, 0-360°
- Type d'alimentation électrique
- 10-30 V DC
- Température de fonctionnement
- de -40 à +60°C
- Seuil
- ###NETPILOTELT###0.01m/s
- Sortie
- Analogique
For marine environment Range : 0-75m/s, 0-360° Serial NMEA and analog outputs
