Reference: ANE03-11401-00
COMBINED WIND TRANSMITTER ULTRASONIC POUR TUNNEL THIES
€0.00
Tax included
Measur. range : 0-65m/s / 1-181° / -50...+70°C Accuracy : 0,1m/s / 1° / 0,5°C Electr. Output : analogue or digital Operating voltage : 8-24 V DC ou 12-28 V AC

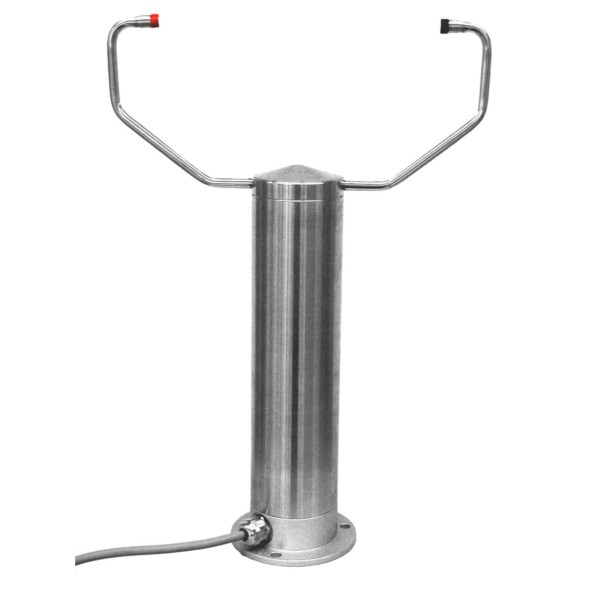

The combined wind transmitter ULTRASONIC 1D THIES is designed for the measurement of the speed, the direction and the virtual temperature of wind. Main parts are made of aluminium and stainless steel.
High measurement accuracy thanks to ultrasonic system
More information : Our web site BLET
ANE03-11401-00_W01
Data sheet
- Précision
- 0,1m/s / 1° / 0,5°C
- Résolution
- 0,1m/s / 1° / 0,1°C
- Type de protection
- IP 65
- Matériau(x)
- Acier inoxydable
- Plage de mesure
- 0-65m/s / 1-181° / -50...+70°C
- 1 - Type de produit
- Anémomètre
- Type d'alimentation électrique
- 8-42 V DC ou 12-28 V AC
- Alimentation chauffage
- 20W - 24 V AC/DC
- Connexion electr.
- 8 pole plug
- Sortie
- Analogique ou numérique
- Dimensions
- 424x278mm
Measur. range : 0-65m/s / 1-181° / -50...+70°C Accuracy : 0,1m/s / 1° / 0,5°C Electr. Output : analogue or digital Operating voltage : 8-24 V DC ou 12-28 V AC
