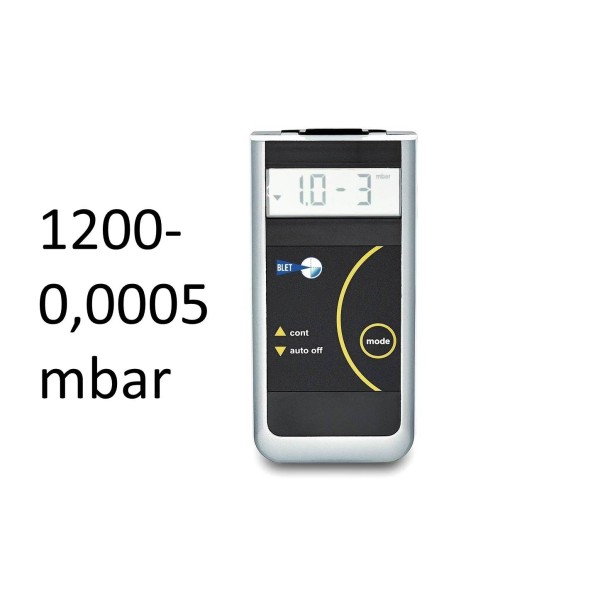

THYRACONT BLET VACUUM METER PIEZO AND PIRANI 1200-0.0005mbar

€1,102.49

Tax included

THYRACONT BLET vacuum gauge, measuring range: 1200 to 0.0005 mbar, accurate 0.0001, lithium-ion, piezoresistive or Pirani with internal sensor

Description
Product Details

This versatile digital vacuum meter measures absolute pressure in the fine vacuum range. It is equipped with USB interface and can be used as data logger. It can be operated with battery or external power supply making it ideal for either portable or stationary applications. Wide measuring range due to combined sensor piezo/Pirani. Excellent long term stability. High accuracy, excellent repeatability. Min/Max Memory: Storage and display of high and low values. Up to 5000 h battery life. Data logger functionality: Save up to 2000 measurements in the vacuum meter. Vacuum connection by small flange, G1/4 female thread or screw in hose nozzle.

Find all the technical information on our website BLET - Dynamomètres

Reference VAC83-2I120507

Data sheet

Résolution: 0.0001
Type de protection: IP 40
Ecran: LCD 12mm
Plage de mesure: 1200 to 0.0005 mbar
1 - Type de produit: Vacuomètre
Type d'alimentation électrique: Batterie 9V ou 15 VDC (externe)
Température de fonctionnement: 0 - 50°C
Connexion electr.: Jack pour alimentation externe
Consommation de l'alimentation: Approx. 110mW
Vitesse d'acquisition: 1?999s
1999s
Principe de mesure: Pirani, dépendant du type de gaz,Piezoresistif, indépendant du t
Connectique du capteur: Intégré dans l'appareil
Température de stockage: 0-50°C
Cadence de mesure: 1.0s
Connection au vide: Bride Acier inoxydable DN ISO-KF
