WEATHER STATION COMPACT WSC11 THIES HOME AUTOMATION ref : 4.9056.00.000 THIES 4.9056.00.000 : securemail.fr
  • New
WEATHER STATION COMPACT WSC11 THIES HOME AUTOMATION ref : 4.9056.00.000 THIES 4.9056.00.000 : securemail.fr

Reference: 4.9056.00.000

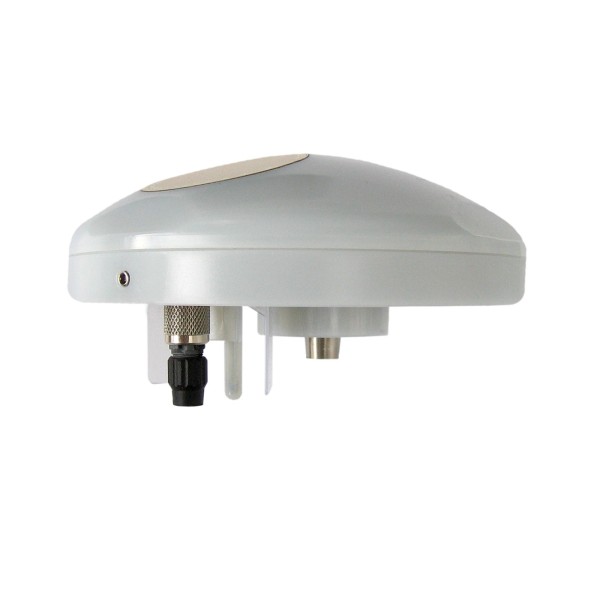

WEATHER STATION COMPACT WSC11 THIES HOME AUTOMATION

Contact us
Weather station : Wind, precipitation, brightness, radiation, air pressure, temperature and air humidity sensors
Quantity

The Weather Station Compact WSC11 is designed for the use in: Building automation (such as shading control)



The interface to the instrument is digital and consists of an RS485 interface in half-duplex-mode.



Together with the ID-based communication the interface allows the operation of the weather station in a bus.



The instrument has a GPS receiver. It serves for determining the position and time. Herefrom, the sun position is calculated additionally.



The following parameters can be measured:

  • Wind speed
  • Wind direction
  • Brightness (in the North, East, South, West)
  • Twilight
  • Global radiation
  • Precipitation
  • Temperature
  • Relative humidity
  • Air pressure
  • Time / Date
  • Geostationary data (Longitude Latitude)
  • Sun position (Elevation and Azimuth)





More information : Our web site BLET

4.9056.00.000

Data sheet

1 - Type de produit
Station météo
Type d'alimentation électrique
18-30 V DC ou 18-28 V AC / 50-60 Hz
Connexion electr.
Connecteur
Vitesse du vent
0-40 m/s +/-5%
Direction du vent
0-360° +/-10°
Luminosité
0-150 kLux +/- 3%
Sortie
RS 485
Luminosité (crépusculaire)
0-500 Lux +/-15 Lux
Rayonnement global
0-1300 W/m² +/-10%
Pression atmosphérique
300-1100 hPa (+/-0,5 hPa)
Température
-30-+60°C +/-1°C
Humidité relative
0-100% +/-5%
Précipitations
oui/non
Dimensions
130x70mm
