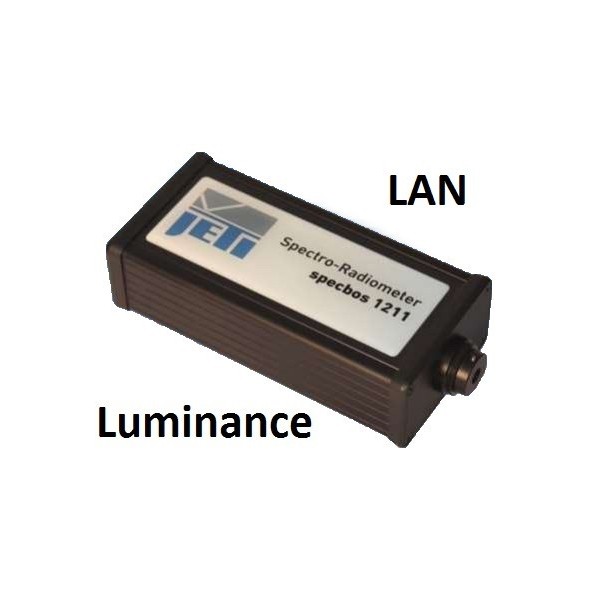

Compact broadband (VIS/NIR) spectroradiometer with imaging grating, offering a variety of applications and compatible with focusing optics, allowing adjustement of its luminance measuring range. The device measures spectral luminance, chromaticity coordinates ((x,y), (u',v')), correlated color temperature, color purity, color rendering index, RGB, circadian metrics and photosynthetically active radiation, with a 4.5nm optical resolution (FWHM) and USB 2.0 fullspeed and LAN interfaces.
SPR27B-211L0LF
Fiche technique
Précision
+/-2%;+/-0.5 nm
Résolution
1 nm
Plage de mesure
0.1-7 500 cd/m²
Type d'alimentation électrique
USB
Température de fonctionnement
de 10 à 40°C
Angle
1.8°
Domaine spectral
350-1000 nm
Fonctions
Luminance/Couleur
Dimensions
180x82x53 mm
Spectral range : 350-1000 nm Measuring range : 0.1-7 500 cd/m² Accuracy : +/-0.5 nm, +/-2% Measuring angle : 1.8° LAN interface Compatible with focusing optics
