Reference: 80.464.40

3D-SENSOR DIGITAL WITH INTEGRATED TAPER HAIMER BLET

€927.60
Tax included
Prob tip: Ø4mm Accuracy: 0,005mm Resolution: 0.001mm Display: 45x23mm
Quantity
mail On demand

With integrated taper

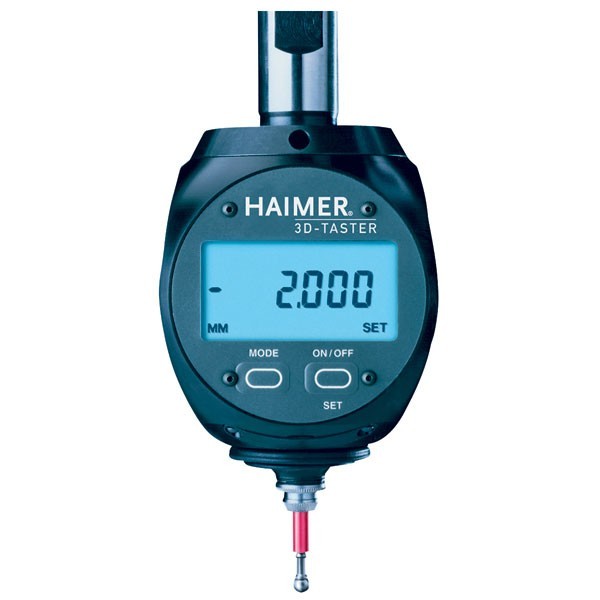

The Digital 3D-Sensor is a further development of the time proven mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines. The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The 0-position is found on the first try. The machine coordinate system can be set withou any calculations because the spindle axis is positioned exactly on the approached edge.

The digital display has large numbers that measure in increments of 0,001mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is splash-proof and dust-proof.



More informations : Our website BELT.

80.464.40

Data sheet

Précision
0,005mm
Résolution
0,001mm
1 - Type de produit
Palpeur 3D
Répétabilité
0,001mm
Disponibilité
En stock
Diamètre bille de mesure
4mm
Taille d'affichage
45x23mm
Fonctions
mm / Inch
