- New
- On demand
BRIGHTNESS TRANSMITTER THIES
Ref : 7.1414.40.1xx
Availability: Out of stock
Operating Voltage : 15-28 V DC or 24 V AC Electr. Output : Analogue Spectral range : 420-675nm Acquisition angle : 0-90° / 0-360°
Reference: 7.1414.xx.0xx

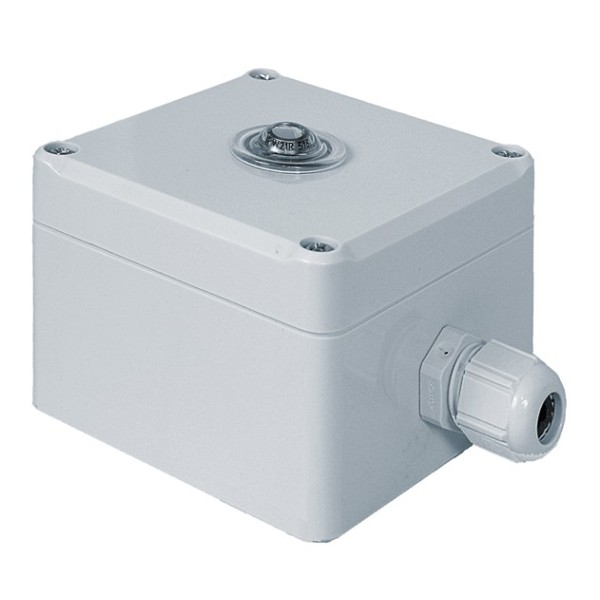

BRIGHTNESS TRANSMITTER THIES BLET
€0.00
Tax included
Operating Voltage : 24 V AC/DC Electr. Output : Analogue Spectral range : 420-675nm Half angle : 55°
The instrument serves for the acquisition of the illumination intensity of the daylight, and is adapted to the sensitivity of the human eye.
The linearized electrical output signal can be used for the control of shading devices, heating systems, and irrigation plants.
More information : Our website BLET
7.1414.xx.0xx_W01
Data sheet
- Précision
- 3%
- Type de protection
- IP 65
- 1 - Type de produit
- Transmetteur de luminosité
- Type d'alimentation électrique
- 24 V AC/DC
- Connexion electr.
- Cable vissé
- Domaine spectral
- 420-675nm
- Sortie
- Analogique
- Dimensions
- 80x82x65mm
Operating Voltage : 24 V AC/DC Electr. Output : Analogue Spectral range : 420-675nm Half angle : 55°
