- New
BRIGHTNESS TRANSMITTER THIES
Ref : 7.1414.40.1xx
Availability: Out of stock
Operating Voltage : 15-28 V DC or 24 V AC Electr. Output : Analogue Spectral range : 420-675nm Acquisition angle : 0-90° / 0-360°
Reference: 7.1414.51.150

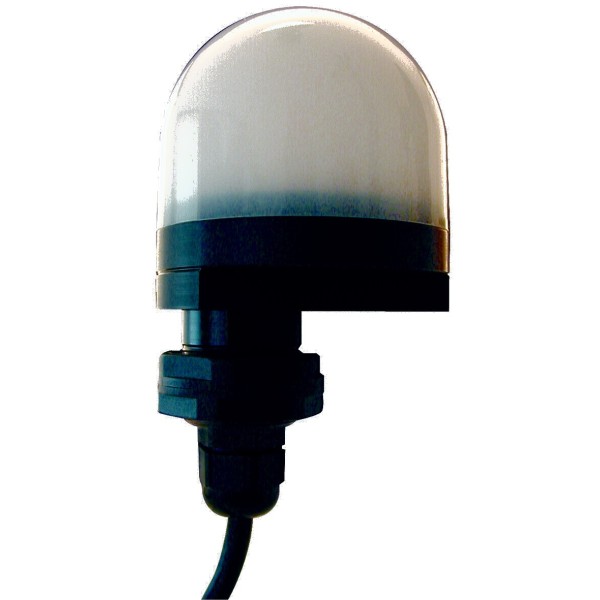

BRIGHTNESS TRANSMITTER THIES
Contact us
Operating Voltage : 15-36 V DC ou 15-24 V AC Electr. Output :0-20 mA/4-20 mA/0-10 V (prog.) Measuring range : 0-150K/100K/50K/10K lux (prog.) / 0-1000lux Spectral range : 350-820nm
Measuring sensor for the acquisition of the illumination intensity. It can be used for the regulation of shading devices, heating and irrigation plants in automatically controlled green houses or as twilight sensor.
There are two analogue outputs available: output 1 offers different, selectable measuring ranges. Output 2 is used as fixed measuring ran-ge, particularly for the twilight range. The output signals can be delivered as voltage or current.
More information : Our website BLET
7.1414.51.150
Data sheet
- Précision
- 3%
- Type de protection
- IP 65
- Plage de mesure
- 0-150K/100K/50K/10K lux (progr.) / 0-1000lux
- 1 - Type de produit
- Transmetteur de luminosité
- Type d'alimentation électrique
- 15-36 V DC ou 15-24 V AC
- Connexion electr.
- Cable 5m
- Domaine spectral
- 350-820nm
- Sortie
- 0-20 mA/4-20 mA/0-10 V (prog.)
- Dimensions
- 70x73mm
Operating Voltage : 15-36 V DC ou 15-24 V AC Electr. Output :0-20 mA/4-20 mA/0-10 V (prog.) Measuring range : 0-150K/100K/50K/10K lux (prog.) / 0-1000lux Spectral range : 350-820nm
