Reference: TOU07-ME030000

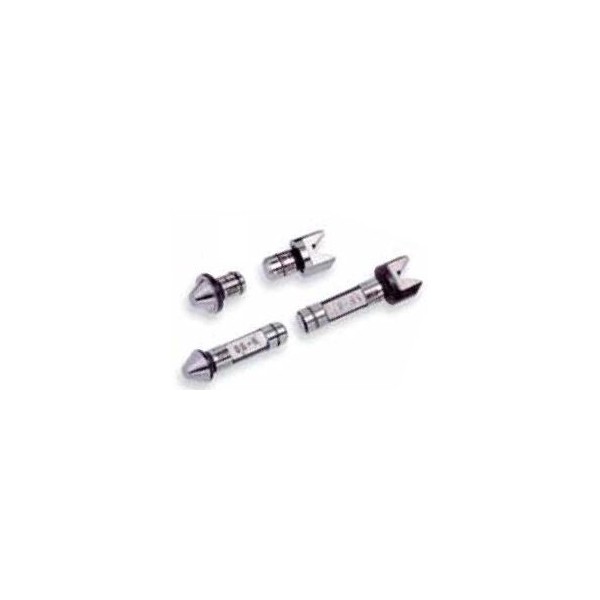

INTERCHANGEABLE ANVILS FOR OUTSIDE THREAD MEASURING PITCH 0,3 mm
Contact us
Interchangeable anvils : 60°, Diameter : 3,5 mm
Anvils couple for thread measuring for adapted outside micrometer.
TOU07-ME030000
Data sheet
- 1 - Type de produit
- Micromètre
- Pas
- 0,3 mm
- Intérieur/Extérieur
- Extérieur
Interchangeable anvils : 60°, Diameter : 3,5 mm
