Reference: TOU07-AF635065

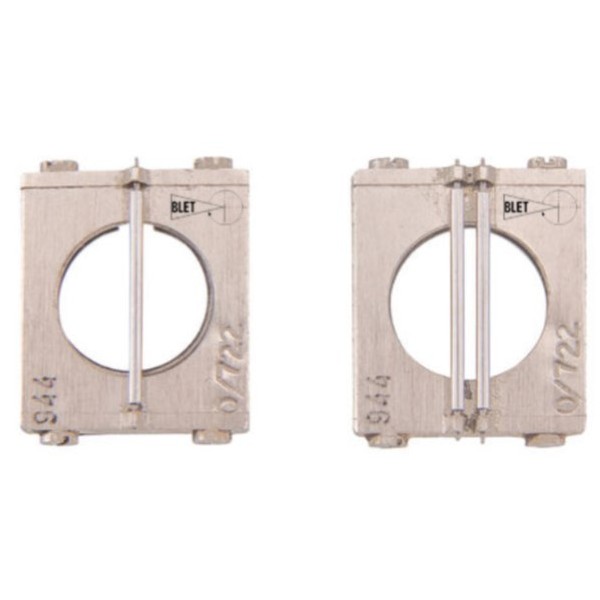

SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 6,350mm ; Metric threads : 12mm ; TPI threads: 2(5/8)-2(1/2)TPI
This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF635065
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 12mm
- Diamètre du fil
- 6,350mm
- Pas Whitworth
- 2(5/8)-2(1/2)TPI
Wire diameter: 6,350mm ; Metric threads : 12mm ; TPI threads: 2(5/8)-2(1/2)TPI
