Reference: TOU07-AF033565

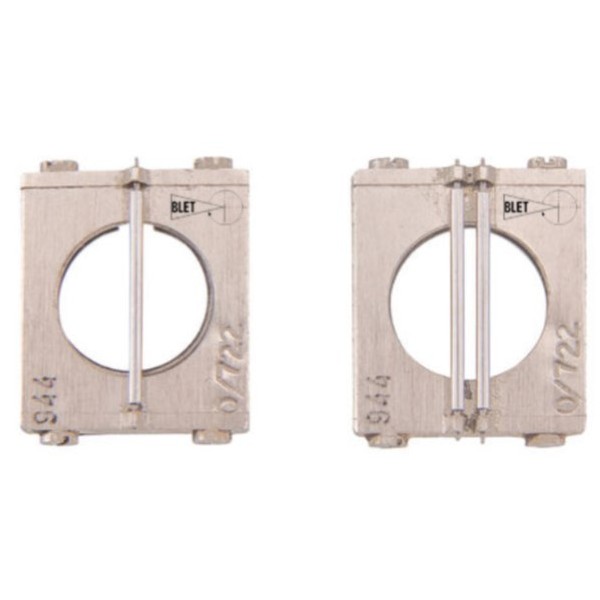

SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 0,335mm ; Metric threads : 0,60mm ; TPI threads: 48-40TPI
This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF033565
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 0,60mm
- Diamètre du fil
- 0,335mm
- Pas Whitworth
- 48-40TPI
Wire diameter: 0,335mm ; Metric threads : 0,60mm ; TPI threads: 48-40TPI
