Reference: TOU07-AF072565

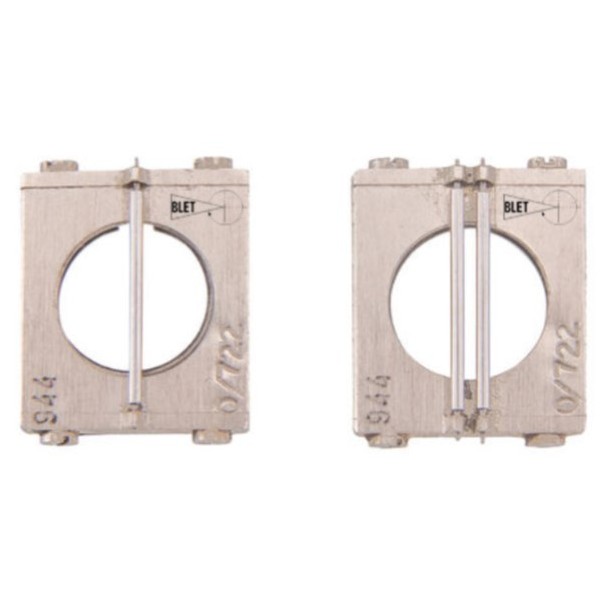

SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 0,725mm ; Metric threads : 1,25mm ; TPI threads: 22-20-19TPI
This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF072565
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 1,25mm
- Diamètre du fil
- 0,725mm
- Pas Whitworth
- 22-20-19TPI
Wire diameter: 0,725mm ; Metric threads : 1,25mm ; TPI threads: 22-20-19TPI
