Reference: TOU07-AF045565

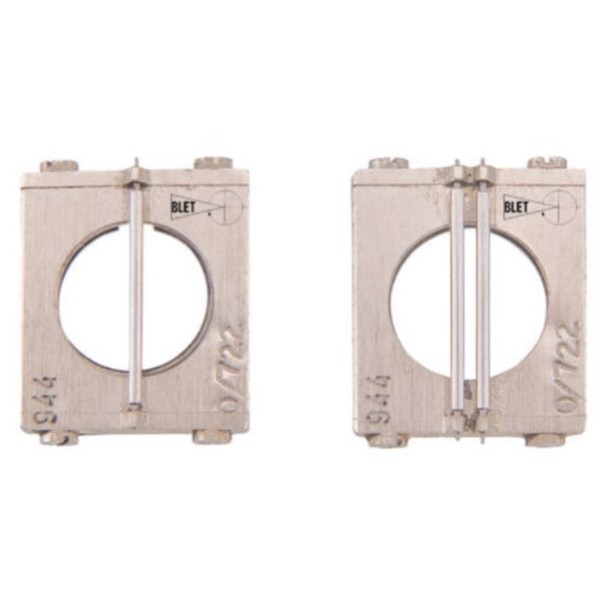

SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 0,455mm ; Metric threads : 0,70-0,75-0,80mm ; TPI threads:
This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF045565
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 0,70-0,75-0,80mm
- Diamètre du fil
- 0,455mm
Wire diameter: 0,455mm ; Metric threads : 0,70-0,75-0,80mm ; TPI threads:
