Reference: TOU07-AF089565
SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 0,895mm ; Metric threads : 1,50mm ; TPI threads: 18-16TPI

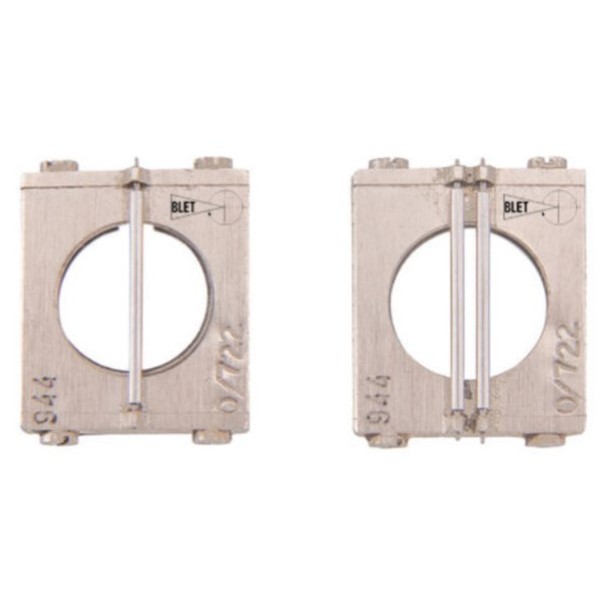

This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF089565
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 1,50mm
- Diamètre du fil
- 0,895mm
- Pas Whitworth
- 18-16TPI
Wire diameter: 0,895mm ; Metric threads : 1,50mm ; TPI threads: 18-16TPI
