Reference: TOU07-AF205065

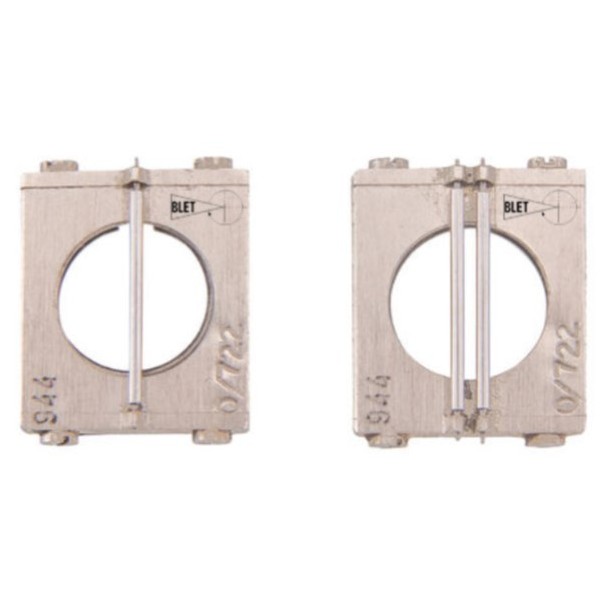

SHORT MEASURING WIRES FOR MEASURING SCREW THREADS BLET
Contact us
Wire diameter: 2,050mm ; Metric threads : 3,0-3,5mm ; TPI threads: 8-7TPI
This pair of needles measures the thread using the 3-thread method. It is suitable for outside micrometers 6.5mm diameter (other diameters on request).
TOU07-AF205065
Data sheet
- 1 - Type de produit
- Micromètre
- Pas métrique
- 3,0-3,5mm
- Diamètre du fil
- 2,050mm
- Pas Whitworth
- 8-7TPI
Wire diameter: 2,050mm ; Metric threads : 3,0-3,5mm ; TPI threads: 8-7TPI
