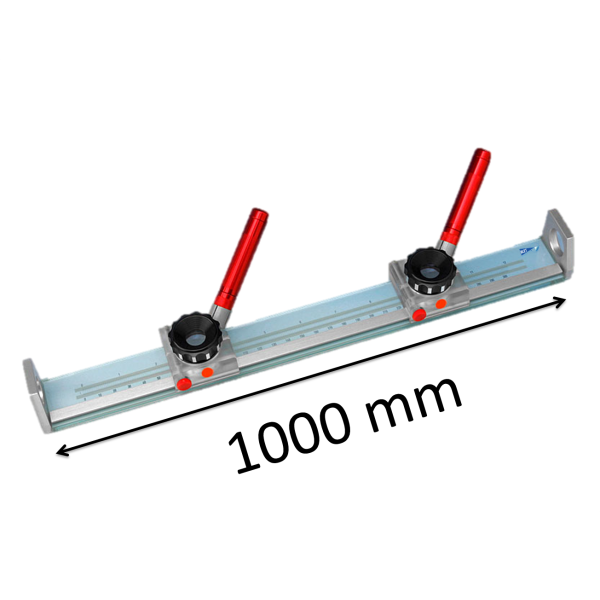

FLOAT GLASS SCALE WITH ZOOM FOR PRINT SHOP x15 1000MM
  • New
  • On demand
These precision glass measuring rods have graduations and numbers consisting of vapour-coated hard chrome. One scale each available in metric and inch increments. A white strip serves as a background on one side of the numbers to allow them to be read off more easily. The chrome scales are equipped with two anodised grips on the sides for secure handling. The precision magnifiers (15x magnification factors and 12 millimetre field of vision) in combination with the two lights. ensure simple, error-free read-off of the scale. The minimum increments on the metric scale are 0.1 millimetre. A further increase in the read-off accuracy is possible with the chrome micro-scale. These valuable precision glass measuring rods are delivered in a stable wooden case to protect them from damage. These glass measuring rods have the advantage that their expansion is minimal when heated. Temperature variations therefore have hardly any effect when using chrome scale rods.


Find all the technical information on our website Blet-Mesure Règles

REGM2-R5YAV000

Data sheet

Résolution
0,01 mm
Matériau(x)
verre flotté chromé
Longueur de mesure
1000 mm
Erreur maximale sur la mesure
0,006 mm
Longueur du dispositif
1065 mm
Largeur du dispositif
39 mm
