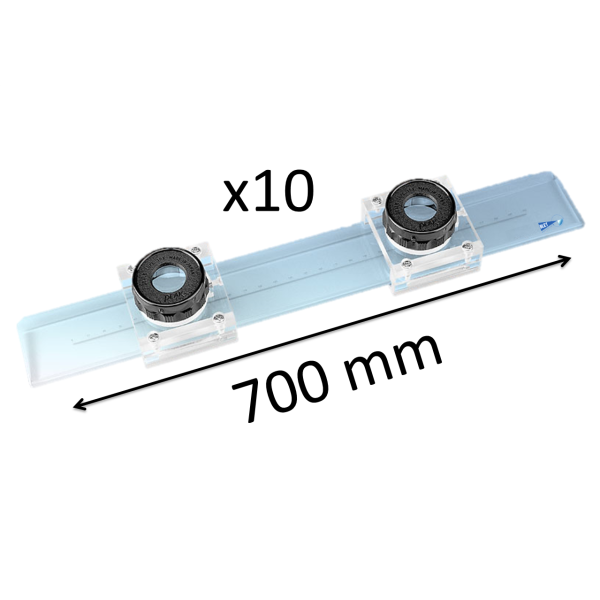

GLASS SCALE WITH ZOOM FOR PRINT SHOP X10 700MM
  • New
  • On demand
GLASS SCALE WITH ZOOM FOR PRINT SHOP X10 700MM

Reference: REGM2-REYAW001

GLASS SCALE WITH ZOOM FOR PRINT SHOP X10 700MM

€4,442.40
Tax included
Material: glass Measuring Range: 700 mm Resolution : 0,1 mm
Quantity
mail On demand

Measurement of greater distances with measuring magnifiers is possible only to a limited extent due to the length of the scales. Our glass scale are the optimum supplement for quick and simple determination of lengths and distances. The four lengths of 300 mm, 500 mm, 700 mm and 1.000 mm are supplied with two achromatic, focusable, 10 x reading magnifiers (see measuring magnifier 1983). The magnifiers on these measuring rods have a field of view of 20 mm. The acrylic mounts for the magnifiers have leaf springs integrated into the sides to prevent them from slipping. Separate silk lined boxes are included for the glass measuring rod and the two magnifiers.


Find all the technical information on our website Blet-Mesure Règles

REGM2-REYAW001

Data sheet

Résolution
0,1 mm
Matériau(x)
Verre
Longueur de mesure
700 mm
Erreur maximale sur la mesure
0,0255 mm
Longueur du dispositif
780 mm
Largeur du dispositif
49 mm
