HEAT FLUX SENSOR GARDON 1000x10^3W/m²Ref : FLUH0-G01M200 BLET FLUH0-G01M200 : securemail.fr
  • New
  • On demand
HEAT FLUX SENSOR GARDON 1000x10^3W/m²Ref : FLUH0-G01M200 BLET FLUH0-G01M200 : securemail.fr

Reference: FLUH0-G01M200

HEAT FLUX SENSOR GARDON 1000x103W/m²

€0.00
Tax included
Flux type : Rayonnement, Protection : , Measuring range : 1000 x 10³ W/m², Cable length : 2 m
Quantity
mail On demand

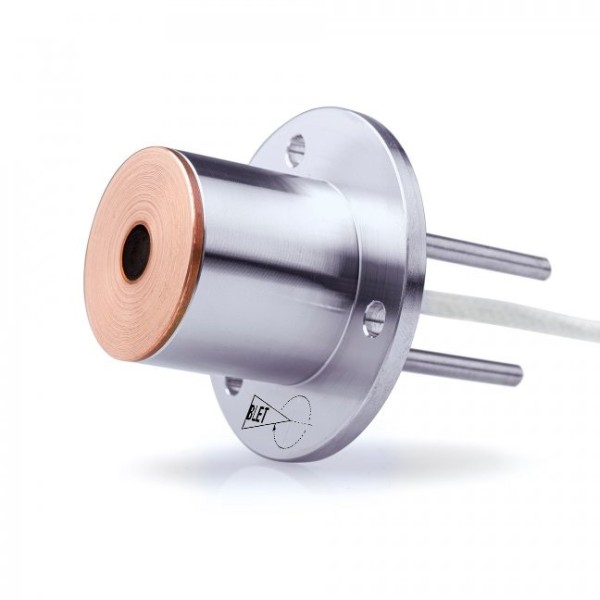

This model is a water-cooled sensor that measures heat flow. The Gardon gauge sensor is based on copper and copper alloys and operates at levels of heat flow that other sensors cannot withstand. Optionally, it can be fitted with a sapphire crystal window; to measure radiative heat flux only, not convection heat flux. This sensor has a built-in K-type thermocouple and is available with different dedicated measuring ranges.

Operating temperature :

-30 to +800 °C (sensor, copper housing)
-30 to +650 °C (black coating)
-30 to +250 °C (cable)
-30 to +200 °C (sensor body)
-30 to +105 °C (cable termination ends)
FLUH0-G01M200

Data sheet

Plage de mesure
1000 x 10³ W/m²
1 - Type de produit
Capteur de flux thermique
Longueur du câble
2 m
Sensibilité
8 x 10-9 V/(W/m²)
Type de flux thermique
Rayonnement
Poids (incluant le câble)
170 g
Dimensions
Diamètre 43,85 mm
