Reference: FLUH0-G05C200

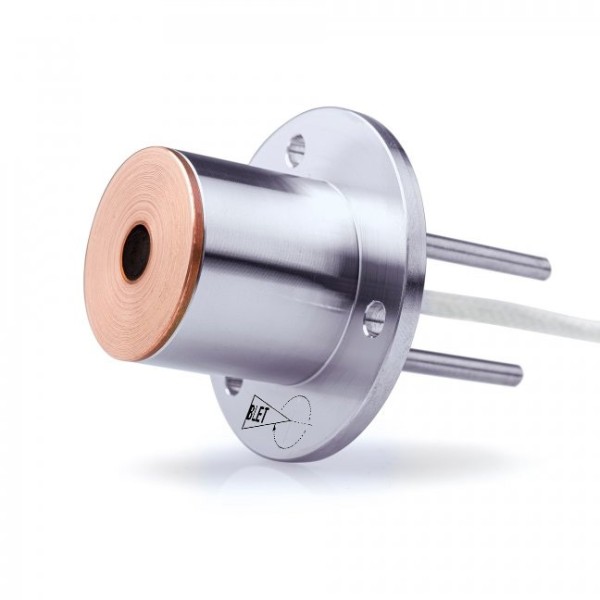

HEAT FLUX SENSOR GARDON 500x103W/m²
€0.00
Tax included
Flux type : Rayonnement, Protection : , Measuring range : 500 x 10³ W/m², Cable length : 2 m
This model is a water-cooled sensor that measures heat flow. The Gardon gauge sensor is based on copper and copper alloys and operates at levels of heat flow that other sensors cannot withstand. Optionally, it can be fitted with a sapphire crystal window; to measure radiative heat flux only, not convection heat flux. This sensor has a built-in K-type thermocouple and is available with different dedicated measuring ranges.
Operating temperature :
-30 to +800 °C (sensor, copper housing)
-30 to +650 °C (black coating)
-30 to +250 °C (cable)
-30 to +200 °C (sensor body)
-30 to +105 °C (cable termination ends)
FLUH0-G05C200
Data sheet
- Plage de mesure
- 500 x 10³ W/m²
- 1 - Type de produit
- Capteur de flux thermique
- Longueur du câble
- 2 m
- Sensibilité
- 15 x 10-9 V/(W/m²)
- Type de flux thermique
- Rayonnement
- Poids (incluant le câble)
- 170 g
- Dimensions
- Diamètre 43,85 mm
Flux type : Rayonnement, Protection : , Measuring range : 500 x 10³ W/m², Cable length : 2 m
