- New
- On demand
LASER DISTANCE SENSOR 0,05-100m +/-1mm 50Hz
Ref : TEL44B-1010505
Availability: Out of stock
Measuring range : 0,05-100m Accuracy : +/-1mm Measuring rate : 50Hz Family : DEN-10-500
Reference: TEL44B-1032505

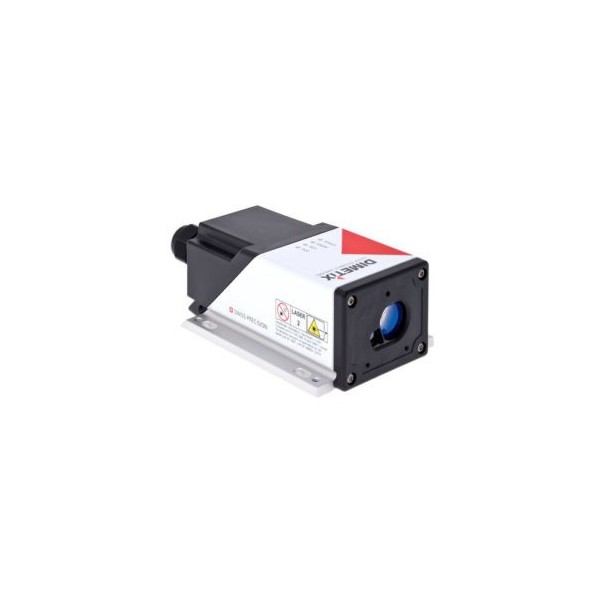

LASER DISTANCE SENSOR 0,05-100m +/-3mm 250Hz
€2,769.60
Tax included
Measuring range : 0,05-100m Accuracy : +/-3mm Measuring rate : 1kHz Family : DPE-30-500
Robust, compact and precise laser distance sensor for long distance measurement without contact, with digital outputs RS232, RS422, SSI, analog output 4..20mA. The range can be increased up to 500m with the reflector.
TEL44B-1032505
Data sheet
- Précision
- +/-3 mm
- Plage de mesure
- 0.05-100 m
- Type d'alimentation électrique
- 12-30 V DC
- Température de fonctionnement
- de -40 à +60°C
- Répétabilité
- +/-0,7 mm
- Sortie
- 4-20mA;RS 422,SSI;RS 232
- Fréquence de mesure
- 250 Hz
- Dimensions
- 140x78x48 mm
Measuring range : 0,05-100m Accuracy : +/-3mm Measuring rate : 1kHz Family : DPE-30-500
