Reference: TEL44B-1030500

LASER DISTANCE SENSOR 0,05-100m +/-3mm 50Hz

€2,011.20
Tax included
Measuring range : 0,05-100m Accuracy : +/-3mm Measuring rate : 50Hz Family : DAN-30-150
Quantity
mail On demand

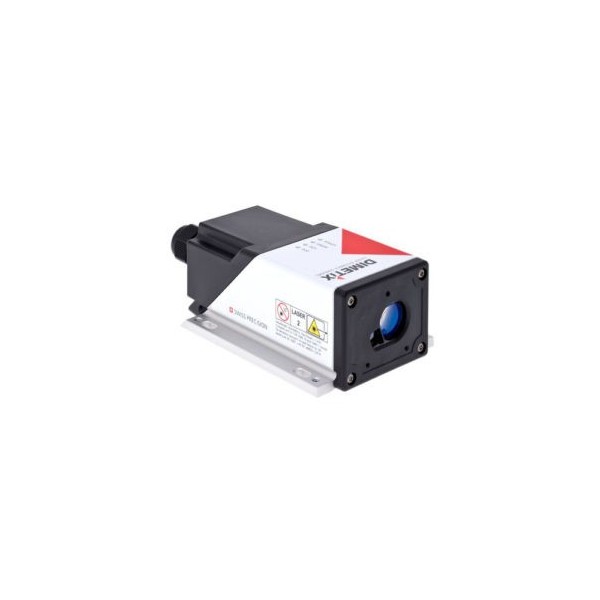

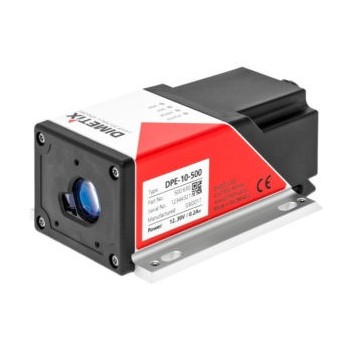

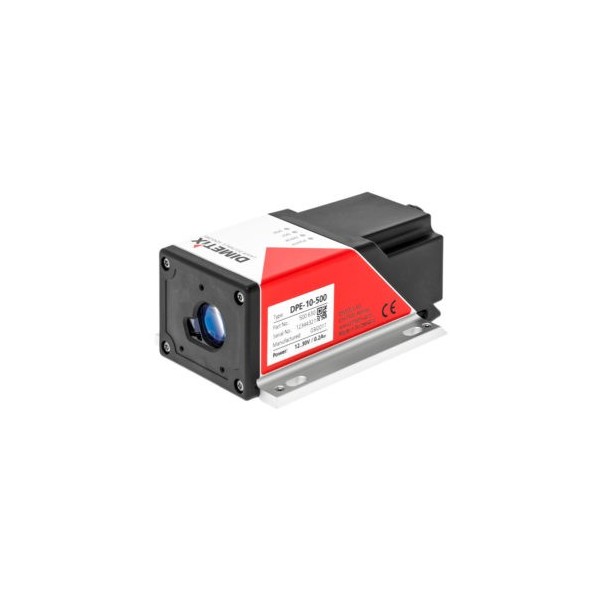

Compact and precise laser distance sensor for long-distance measuring without contact, with 2 programmable digital outputs, 1 digital output for error display and a programmable digital input. Laser dot size at 100m : 55x30mm. Range can be extended to 150m using reflective foil.

TEL44B-1030500

Data sheet

Précision
+/-3 mm
Plage de mesure
0.05-100 m
Type d'alimentation électrique
12-30 V DC
Température de fonctionnement
de -10 à +50°C
Répétabilité
+/-0.7 mm
Sortie
RS 422;RS 232;4-20mA
Fréquence de mesure
50 Hz
Dimensions
140x78x48 mm
