HEAVY DUTY WIND MONITOR-HD-ALPINE
Ref : 05108-45
Availability: Out of stock
Ice resistant coating Range : 0-100m/s, 0-360° Accuracy : +/-0,3m/s, +/-3°
Reference: 03002X
WIND SENTRY
€0.00
Tax included
Range : 0-50m/s, 0-360° Accuracy : +/-0,5m/s, +/-5°

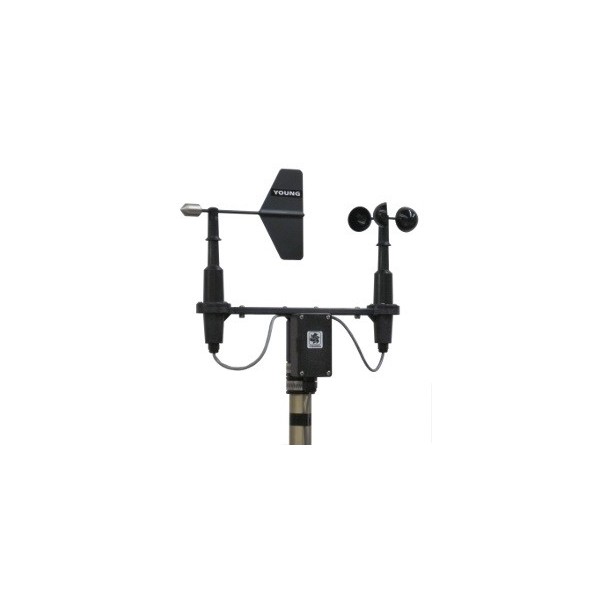

Wind sentry (speed and direction sensors), corrosion-resistant ; overall height 32cm, crossarm length 28cm, mounted on a 34mm diameter pipe. 3-Cup anemometer, 12cm diameter, AC output with 1 pulse per revolution (0-5V and 4-20mA output options). 22cm long turning radius vane with a 16cm turning radius, 1% linearity potentiometer with a life expectancy of 50 million revolutions. Operates at temperatures within the -50 to 50°C range.
03002X_W01
Data sheet
- Précision
- +/-0.5m/s, +/-5°
- Plage de mesure
- 1.3-50 m/s, 0-360°
- Type d'alimentation électrique
- 0-15VDC
- Température de fonctionnement
- -50 à 50°C
- Sortie
- Vitesse
- Type d'alimentation électrique
- 0-15VDC
- Précision
- +/-0.5m/s, +/-5°
- Température de fonctionnement
- -50 à 50°C
Range : 0-50m/s, 0-360° Accuracy : +/-0,5m/s, +/-5°
