Reference: 04101X
WIND MONITOR JR
€0.00
Tax included
Compact Measuring range : 0-60m/s, 0-360° Accuracy : +/-5%, +/-5°

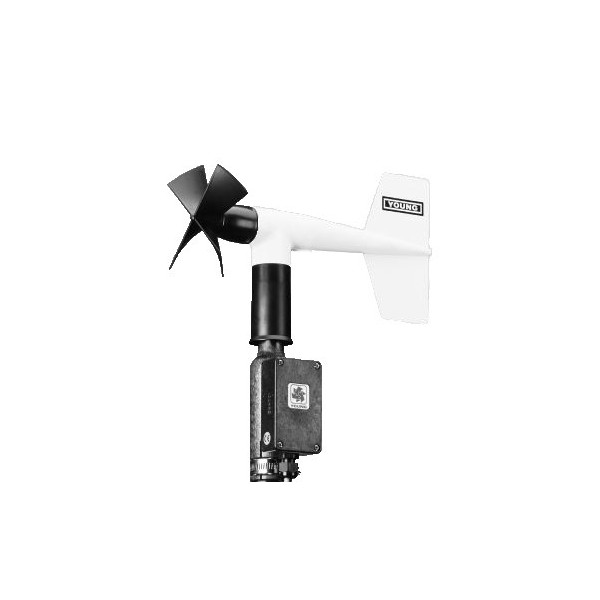

Compact high performance wind sensor (speed and direction), corrosion-resistant ; height 33cm, length 31cm, mounted on a 34mm diameter pipe. Propeller anemometer with 4 helicoid blades molded of polypropylene, 13cm diameter, AC output with 3 pulses per revolution (0-5V (8-24VDC power requirement) and 4-20mA (8-30VDC power requirement) output options). 21cm turning radius vane, 1% linearity potentiometer with a life expectancy of 50 million revolutions. Operates at temperatures within the -50 to 50°C range.
04101X_W02
Data sheet
- Précision
- +/-5%, +/-5°
- Plage de mesure
- 1-60m/s, 0-360°
- Type d'alimentation électrique
- 0-15VDC
- Température de fonctionnement
- -50 à 50°C
Compact Measuring range : 0-60m/s, 0-360° Accuracy : +/-5%, +/-5°
