SUNSHINE RECORDER THIES
Ref : 7.140x.10.000
Availability: Out of stock
Measuring value : sunshine duration Recording period : 1 day per strip chart Degree of latitude : adjustable
Reference: 7.1420.00.000

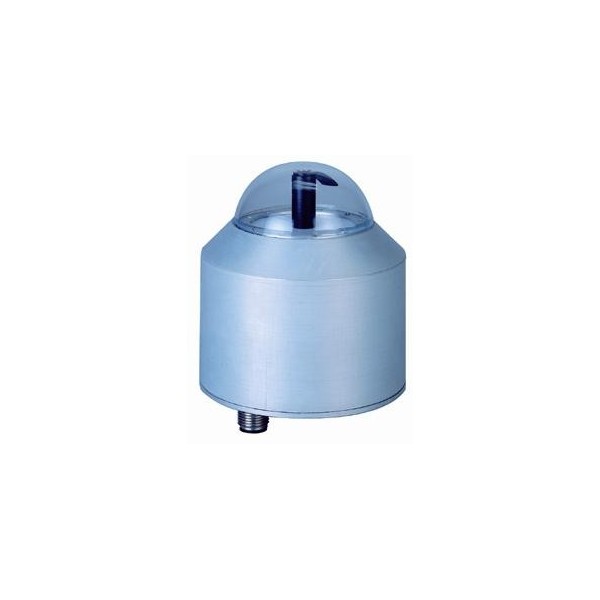

SUNSHINE INDICATOR SDE 9.1 THIES
Contact us
Operating Voltage : 9-24 V DC Sensor type : Silicon photo diode Electr. Output : Yes / No (0/5V) Threshold : 120 W/m² Spectral range : 380-1100nm
Instrument to measure the global radiation and the sunshine duration.The threshold of sunshine duration is stated by the German Weather Service (DWD) with 120 W/m2. The sensor delivers a digital Yes-/No-information for the sunshine duration and a voltage as information for the global radiation. The measurement is cos-corrected.
Delivery includes calibration certificate.
More information : Our website BLET
7.1420.00.000
Data sheet
- Résolution
- Yes(0 V)/No(5 V)
- Matériau(x)
- Verre optique
- 1 - Type de produit
- Capteur d'ensoleillement
- Type d'alimentation électrique
- 9-24 V DC
- Connexion electr.
- Connecteur, cable 5m
- Seuil
- 120 W/m²
- Domaine spectral
- 380-1100nm
- Sortie
- 0-5 V
- Dimensions
- 80x82mm
Operating Voltage : 9-24 V DC Sensor type : Silicon photo diode Electr. Output : Yes / No (0/5V) Threshold : 120 W/m² Spectral range : 380-1100nm
2 other products in the same category:
SUNSHINE SENSOR CSD 3 THIES
Ref : 7.1421.03.000
Availability: Out of stock
Operating Voltage : 9-15 V DC Measuring range : Yes/No / 0-1000 W/m² Electr. Output : 0/1V / 0-1V Threshold : 120 W/m² Spectral range : 400-1100nm
