- New
SUNSHINE RECORDER THIES
Ref : 7.140x.10.000
Availability: Out of stock
Measuring value : sunshine duration Recording period : 1 day per strip chart Degree of latitude : adjustable
Reference: 7.1421.03.000

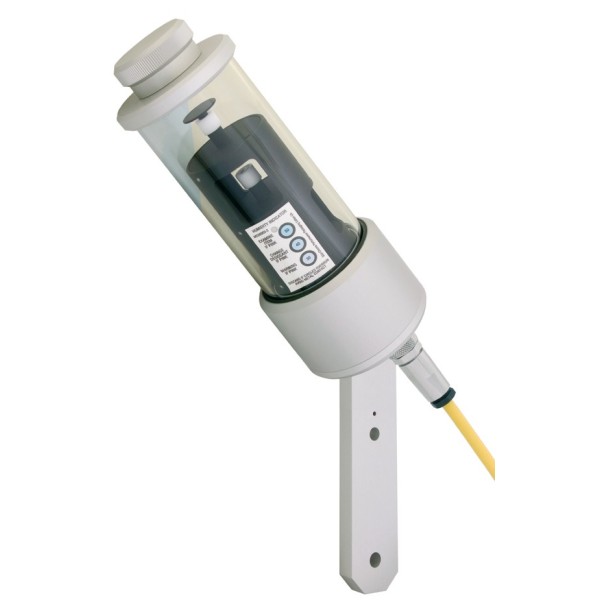

SUNSHINE SENSOR CSD 3 THIES
Contact us
Operating Voltage : 9-15 V DC Measuring range : Yes/No / 0-1000 W/m² Electr. Output : 0/1V / 0-1V Threshold : 120 W/m² Spectral range : 400-1100nm
Instrument to measure the sunshine duration and direct radiation.
The sunshine duration is defined as period, in which the direct solar radiation exceeds the threshold of >120 W/m. The sensor sends a digital Yes/No-information for the sunshine duration, and a voltage as information for the direct radiation. Connectable heating avoids a possible dewing on the instrument.
More information : Our website BLET
7.1421.03.000
Data sheet
- Plage de mesure
- Yes/No / 0-1000 W/m²
- 1 - Type de produit
- Capteur d'ensoleillement
- Type d'alimentation électrique
- 0,1W;9-15 V DC
- Alimentation chauffage
- 1W/10W;9-15 V DC
- Connexion electr.
- Connecteur, cable 15m
- Seuil
- 120 W/m²
- Domaine spectral
- 400-1100nm
- Sortie
- 0/1V / 0-1V
- Dimensions
- 304x131mm
Operating Voltage : 9-15 V DC Measuring range : Yes/No / 0-1000 W/m² Electr. Output : 0/1V / 0-1V Threshold : 120 W/m² Spectral range : 400-1100nm
2 other products in the same category:
SUNSHINE INDICATOR SDE 9.1 THIES
Ref : 7.1420.00.000
Availability: Out of stock
Operating Voltage : 9-24 V DC Sensor type : Silicon photo diode Electr. Output : Yes / No (0/5V) Threshold : 120 W/m² Spectral range : 380-1100nm
