NET RADIATION TRANSMITTER THIES
Ref : 7.1415.10.000
Availability: Out of stock
Electr. Output : 0-18 mV Measuring range : -300-1500 W/m² Spectral range : 300-100000nm
Reference: 7.1415.25.001

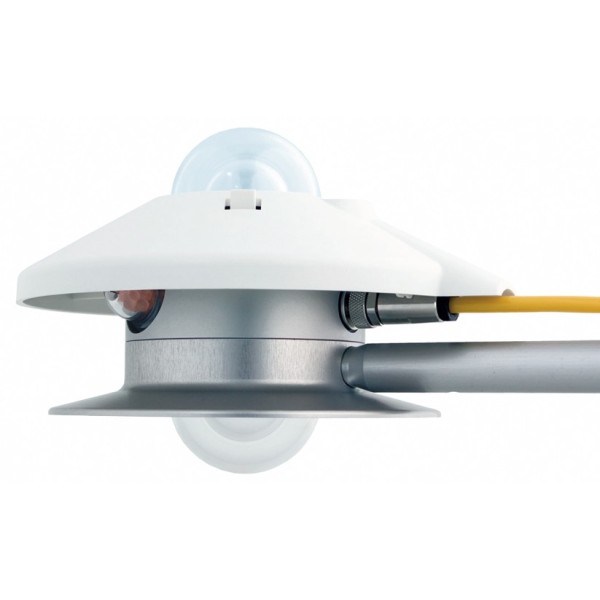

ALBEDOMETER CMA 6 THIES
€0.00
Tax included
Electr. Output : 0-15 mV Measuring range : 2x 0-2000 W/m² Spectral range : 310-2800nm
For the measurement of the global radiation and/or the Albedo on different surfaces. The upper Pyranometer measures the infalling global radia-tion, and the lower instrument the radiation reflected by the surface. The Albedo is to be calculated from both measurements.
The Albedometer consists of two Pyranometers in one case with mounting rod for mast-mounting. The electrical signals of both instruments are output separately. The WMO-recommended measuring value transmitter meets the ISO 9060 –classifi-cation “First Class”.
Delivery includes calibration certificate.
More information : Our website BLET
7.1415.25.001
Data sheet
- Précision
- 2%
- Résolution
- 15 µV/W/m²
- Plage de mesure
- 2 x 0-2000 W/m²
- 1 - Type de produit
- Capteur de radiation net
- Connexion electr.
- Connecteur, cable 10m
- Domaine spectral
- 310-2800nm
- Sortie
- 0-15 mV
- Dimensions
- 150x114mm
Electr. Output : 0-15 mV Measuring range : 2x 0-2000 W/m² Spectral range : 310-2800nm
3 other products in the same category:
PYRRADIOMETER THIES
Ref : 7.1415.20.000
Availability: Out of stock
Electr. Output : 0-15 mV Measuring range : 2x 0-1500 W/m² Spectral range : 300-100000nm
NET RADIOMETER NR LITE THIES
Ref : 7.1415.40.000
Availability: Out of stock
Electr. Output : -25-24 mV Measuring range : -2000-2000 W/m² Spectral range : 200-100000nm
