PYRRADIOMETER THIES
Ref : 7.1415.20.000
Availability: Out of stock
Electr. Output : 0-15 mV Measuring range : 2x 0-1500 W/m² Spectral range : 300-100000nm
Reference: 7.1415.40.000

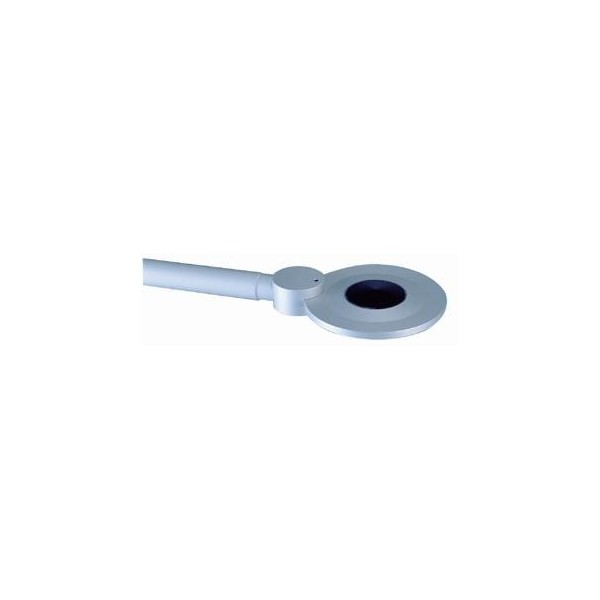

NET RADIOMETER NR LITE THIES
€0.00
Tax included
Electr. Output : -25-24 mV Measuring range : -2000-2000 W/m² Spectral range : 200-100000nm
Instrument for the measurement of the net radiation, that means the instrument forms the difference between the global radiation from above (solar radiation and long-wave atmospheric counter radiation) and the global radiation from below (short-wave and long-wave reflection radiation of the earth). The output signal is in proportion to the net radiation, and can be interpreted as radiation energy which is absorbed from the earth’s surface.
More information : Our website BLET
7.1415.40.000
Data sheet
- Résolution
- 10 µV/W/m²
- Plage de mesure
- -2000-2000 W/m²
- 1 - Type de produit
- Capteur de radiation net
- Connexion electr.
- Cable 15m
- Domaine spectral
- 200-100000nm
- Sortie
- -25-24 mV
- Dimensions
- 120x400mm
Electr. Output : -25-24 mV Measuring range : -2000-2000 W/m² Spectral range : 200-100000nm
3 other products in the same category:
ALBEDOMETER CMA 6 THIES
Ref : 7.1415.25.001
Availability: Out of stock
Electr. Output : 0-15 mV Measuring range : 2x 0-2000 W/m² Spectral range : 310-2800nm
NET RADIATION TRANSMITTER THIES
Ref : 7.1415.10.000
Availability: Out of stock
Electr. Output : 0-18 mV Measuring range : -300-1500 W/m² Spectral range : 300-100000nm
